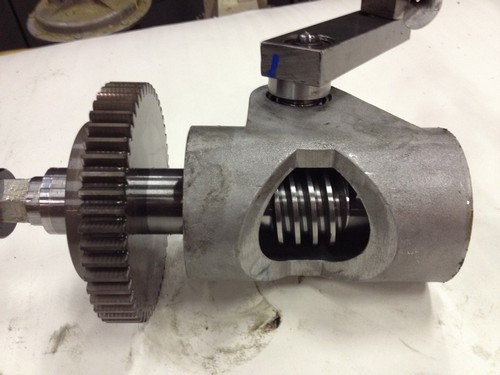

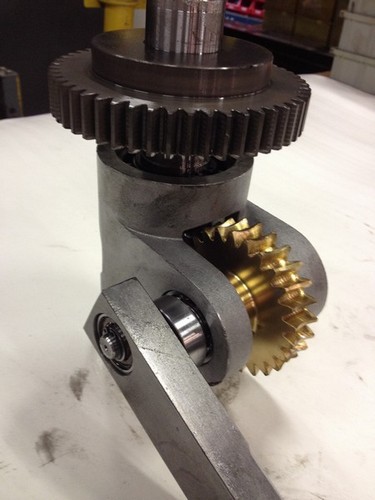

30.03200-0262 - manroland Ink oscillating drive (complete)
Front page / Search / manroland / 30.03200-0262
- Technical details
- manroland
- 30.03200-0262
-
Available versions:Used
- MAN Cromoman
- 166876007
- More than 3 in stock
- Please contact us
- Description
- This assembly consists of the following parts:
D30.03214-0105 - housing
E30.03200-0109 - eccentric shaft
f30.03276-0110 - shaft
f30.03293-0001 - bolt
K06.31410-4400 - grooved ball bearing
K06.29010-0117 - locking ring
E30.03237-0106 - worm wheel
K06.22010-0918 - taper pin
K06.15114-2113 - fitting washer
K06.31420-3201 - grooved ball bearing
K06.29010-0112 - locking ring
K06.29020-0126 - locking ring
K06.16760-0107 - pair of lock washers
E30.03274-0107 - connecting rod
K06.31480-4800 - angular contact ball bearing
K06.29020-0119 - locking ring
K06.29010-0109 - locking ring
K06.15114-2110 - fitting washer
D30.03237-0114 - worm shaft
K06.3
Any prices given are ex Works, as is and subject to continued availability of the parts. Our newsletter is sent out a few times per year.; you will not be receiving daily e-mails from us.
Additional details:
| Dimensions: | 0 x 0 x 0 cm |
| Weight: | 0 kg |
| Warehouse: | SA13-010-00 / A1EZ (U/166876007/8/8/8)
|
| Dimensions and weight are an indication only, used for calculating shipment. If you wish to confirm the exact dimensions of the part, please contact us. | |
